Imaging

Acquire and Analyze Large Amounts of Data

Q-View™ Software is a powerful tool for quantitative analysis of Q-Plex™ Arrays and other chemiluminescent assays. This software program acquires, views, and analyzes microplate images. The software is optimized for use with the Q-View™ Imager, and also works well with a variety of other imaging systems.

4064

Q-View Software Features

  • Image Capture & Processing
  • Easy Spot Finding
  • Well and Sample Assignment
  • Data Analysis
  • Comprehensive Reporting
  • Intuitive User Interface
  • Rapid Processing & Reporting
  • Multiple Regression Models

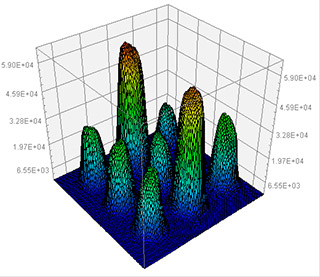

  • 3D Illuminance Plots


New to Q-View Software version 3

  • Enhanced image processing that increases accuracy while reducing project size
  • Regression model improvements that provide tighter fitting curves
  • More options for managing curve fit and regression analysis
  • Redesigned user interface including touch screen support
  • Improved, more convenient software manual and embedded help
  • Accessing Q-View Software

The current version of Q-View Software is included with the purchase of a Q-View Array or a Q-View Imager.

High Quality, Low Cost Chemiluminescent Imaging

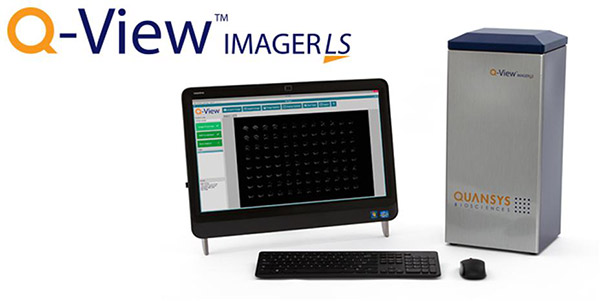

The Q-View Imager LS is a high quality, low-cost chemiluminescent imager. The Q-View Imager LS supports 96-well to 384-well plate based chemiluminescent imaging.

The Q-View Imager LS comes with Q-View Software, a powerful, user-friendly image analysis software package, that enables the user to capture, view and analyze the image. When used together the Q-View Imager LS and Q-view Software provide an optimized imaging system.

Q-View™ Imager LS Specifications

  • Resolution: 18 Megapixel
  • Sensor Type: CMOS
  • Control: via Q-View Software
  • Power: 120–240 Volt AC
  • Optics: selected to minimize vignetting effect
  • Image Application: SBS plate format and maximum blots 3 × 4 3/4 in (7.6×12.1 cm)
  • Connection to PC: USB 2.0
  • Dimensions: 8 × 10 × 22 in (20.32×25.4×55.88 cm)
4065

Contact for order.

High Quality, Reproducible Chemiluminescent Imaging

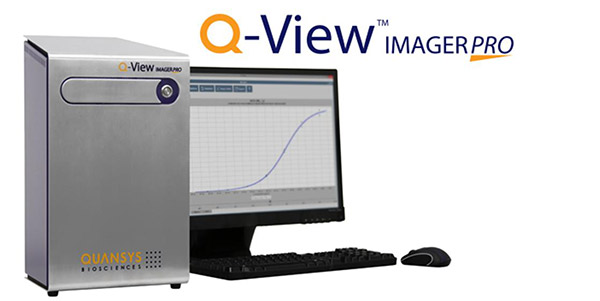

The Q-View Imager Pro is a high resolution chemiluminescence imager for microplates and blots with automation compatibility. Its cooled high quantum efficiency sensor and clinical-grade optics are paired with advanced image acquisition algorithms which combine to reduce noise and maximize sensitivity. The full feature set of the Q-View Imager Pro provides high sensitivity, high throughput data to save you even more time, sample, and money.

The Q-View Imager Pro comes with Q-View Software, a powerful, user-friendly image analysis software package, that enables the user to capture, view and analyze the image. When used together the Q-View Imager and Q-view Software provide an optimized imaging system for use with Q-Plex Technology.

Q-View™ Imager Pro Specifications

  • Resolution: 8.3 Megapixel
  • Pixel Size: 5.4×5.4 microns
  • Sensor Type: CCD
  • Dynamic Range: 58.3 dB
  • Optics: EF 28mm f/2.8 IS USM lens
  • Image Application: SBS plate format and
  • Chemiluminescent blots 3 × 4 3/4 in (7.6×12.1 cm)
  • Imaging Time: 1–5 minutes
  • Control: Q-View Software
  • Connection to PC: USB 2.0
  • Power: 120–240 Volt AC 50/60 Hz
  • Cooling (typical): Max delta –40°C
  • Footprint/Dimensions: 10.5 × 9.5 × 18 in (26.7×24.1×45.7 cm)
4066

Contact for order.
